WAVE ID® Configuration Card Writer

The WAVE ID Writer Program is your go-to for MIFARE DESFire cards to configure WAVE ID® Plus compatible readers for logical access control. Write to any application area on a MIFARE technology contactless card, and allow users to set and manage their own keys. In conjunction with the Configuration Card Manager (CCM), the Configuration Card Writer can create configuration cards to program WAVE ID® Plus readers for the credentials you want without the need of a local or remote host device.

Contact Us Now

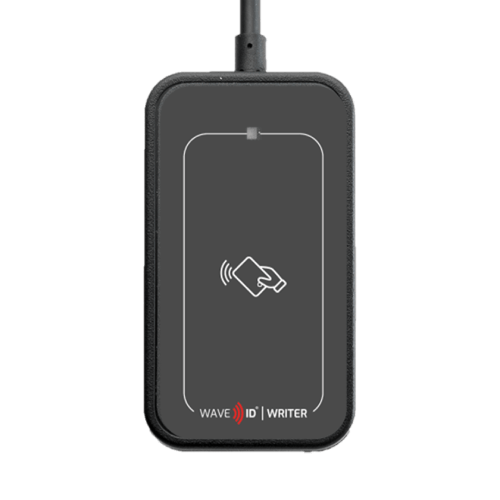

WAVE ID Configuration Card Writer PNG.png
0
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>13.56 MHz</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Power Consumption
<p>65 mA typical, 185 mA maximum</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Dimensions
3.6 in &times; 2.1 in &times; 0.7 in<span class="metric-conversion"> (9.1 cm &times; 5.3 cm &times; 1.8 cm)</span>
Weight
4 oz<span class="metric-conversion"> (113.4 g)</span>
Housing Color
<p>Black</p>
Mounting Options
<p>KT-ANGLE-MINI: WAVE ID Black Angle Mini Mounting Bracket</p> <p>KT-ANGLE-MINI+CLIPS: WAVE ID Black Angle Mini Mounting Bracket w/Cable Clips</p> <p>KT-FLAT-MINI: WAVE ID Black Angle Mini Mounting Dual Lock Kit</p> <p>See<a href="/products/tools-utilities/accessories/mounting-brackets"> Mounting Brackets</a> for details</p>
Cable Length
<p>6’ (1.8 m)</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p>USB self-powered</p>
Interface
<p>USB</p>
Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH</p>
Warranty
<p>One year for material/workmanship defects.&nbsp;<a href="https://www.redesign8-m7yvgca-ftimtubo6a5qs.us-2.platformsh.site/page/warranty-information">See the complete&nbsp;policy for details</a></p>
Compatible Operating Systems
<p>Windows XP®, 7®, 8®, 10®, 11®</p>
Additional Information
<p><strong>Configuration Utilities:</strong> rf IDEAS Configuration Utility, Smart Card Manager, Config Card Manager. Visit <a href="/support/tools/downloads">rfideas support tools</a> for the configuration tool compatible with your operating system</p> <p><strong>Protocol/Operating Mode:</strong><br>Writer</p> <p><strong>Contactless Card Compatibility (13.56MHz):</strong><br>MIFARE DESFire EV1/EV2/EV3 1K, 2K, 4K and 8K Cards</p>

Data Sheet

rf-ideas-ccm-writer-datasheet-pa-163.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Plus Writer MIFARE Secure Black USB Reader RDR-7M30BKU Mini Desktop USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
