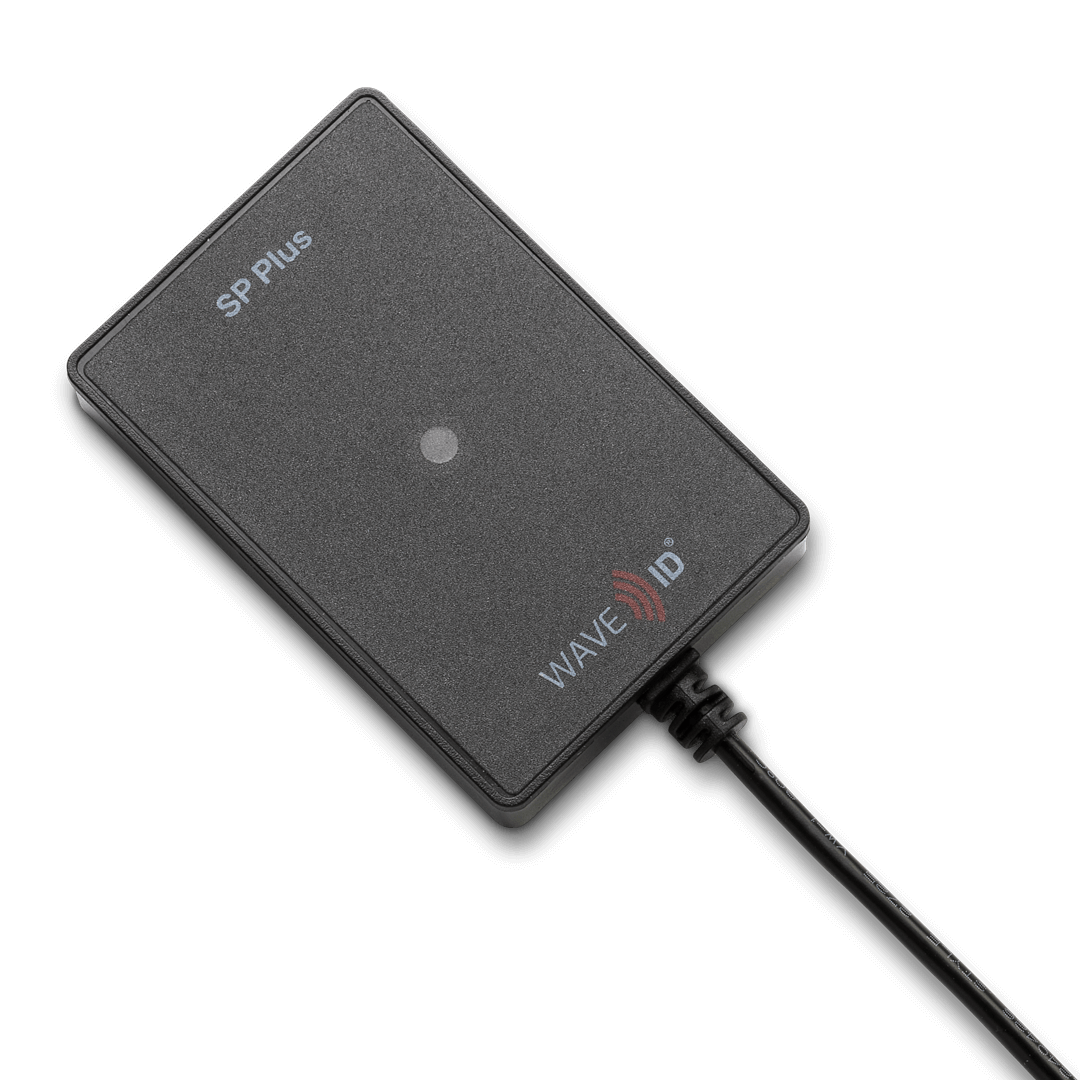

WAVE ID® SP Plus

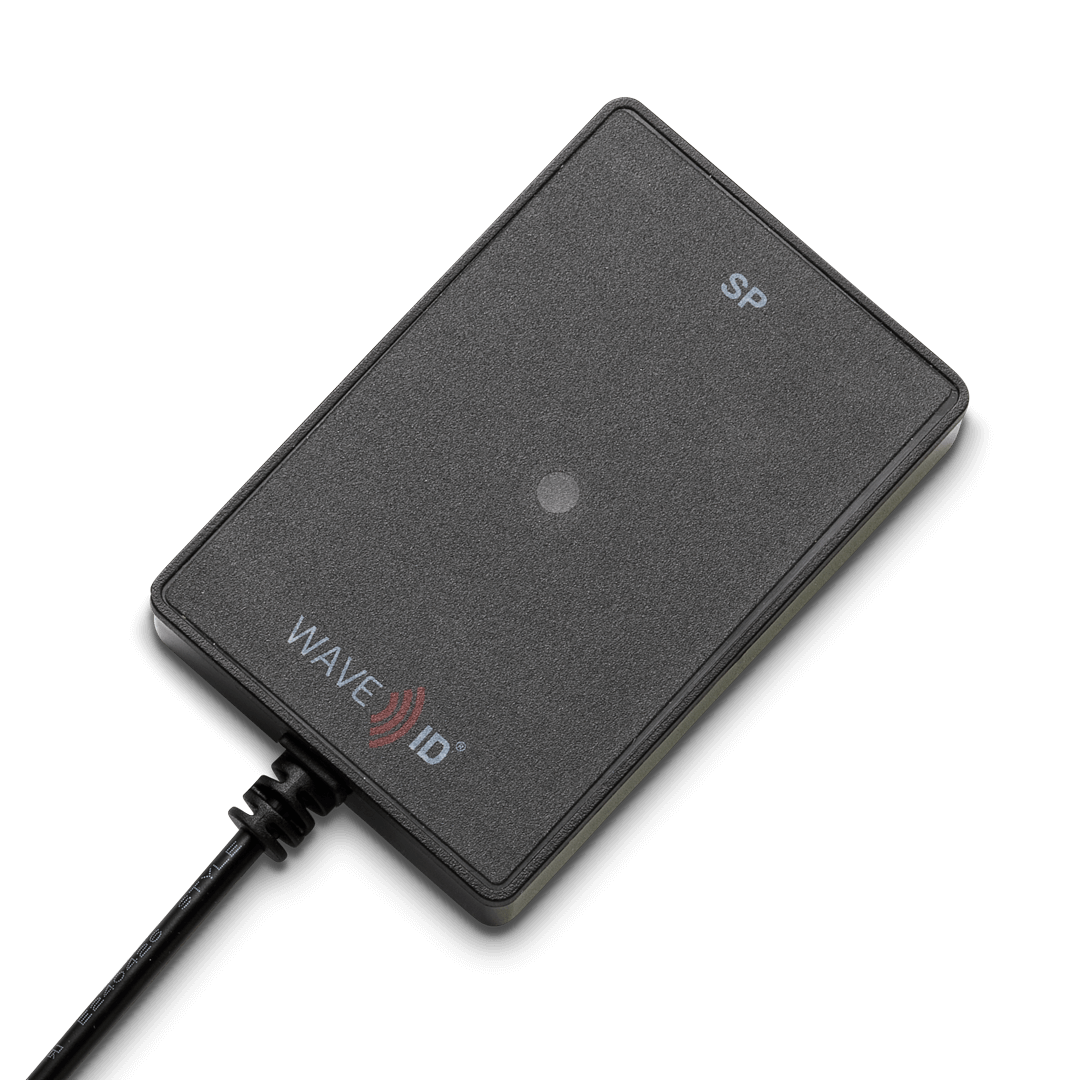

As one of our most flexible offerings, the WAVE ID SP Plus card reader is a dual-frequency smart card reader. For single frequency requirements, the WAVE ID SP is available for 13.56 MHz credentials. Both the WAVE ID SP Plus and WAVE ID SP maximize the value of your existing card system—from proximity to contactless smart card—making use of that data for additional security protection for applications such as printers, healthcare devices, process controllers, autonomous robots and more. This slim, dual-frequency card reader is also “future-proofed” with the capability to update SIM technology to read 800, 805 and 80M cards based on your credential needs.

Contact Us Now
0
0
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p><strong>WAVE ID SP Plus:</strong> Dual 125/132 kHz and 13.56 MHz.<br><strong>WAVE ID Mobile SP Plus:</strong> 125/132 kHz, 13.56 MHz, and 2.4 GHz.</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Power Consumption
<p>70 mA typical, 100 mA maximum</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Model Number
WAVE ID SP Plus: 805H, 800H, 80MH, 30LH; WAVE ID Mobile SP Plus:300H, 30MH, 30LH
Dimensions
0.6 in &times; 2 in &times; 3 in<span class="metric-conversion"> (1.5 cm &times; 5.1 cm &times; 7.6 cm)</span>
Weight
0.8 oz<span class="metric-conversion"> (22.1 g)</span>
Housing Color
<p>Black</p>
Cable Length
<p>6', 7", 5", &amp; 2.5" (Custom Lengths Available. Call our Sales department at (866) 439-4884)</p>
Indicators
<p>LED indicator (green, amber, red) Adjustable beeper volume (off, low, medium, high</p>
Form Factor
<p>Desktop, SP, Non-Housed</p>
Power Supply
<p>USB Self-powered</p>
Interface
<p>USB</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf&nbsp;IDEAS products are certified in various additional countries worldwide. Contact rf&nbsp;IDEAS for additional details.</p>
Warranty
<p>One year for material/workmanship defects. <a href="/about-us/policies">See complete policy for details</a><a href="https://www.redesign8-m7yvgca-ftimtubo6a5qs.us-2.platformsh.site/page/warranty-information">.</a></p>
Compatible Operating Systems
<p>Windows XP®, 7®, 8.1®, 10® and Linux</p>

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
Wave ID® SP Plus MIFARE Secure USB Black Reader RDR-80MH1AKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, EM 410x (4100/4102/4105/4200), Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, ID Teck (128 Bits), Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® Classic Secure Memory, MIFARE® DESFire® EV1 CSN, MIFARE® DESFire® Secure Memory, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 3 CSN (Felica), NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, TechnoGym (Key Fob) CSN, Urmet, XceedID® MIFARE® CSN Slim Profile USB-A
Wave ID® SP Plus MIFARE Secure LEAF USB Black Reader RDR-80MH1AKU-LF aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, EM 410x (4100/4102/4105/4200), Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, ID Teck (128 Bits), Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEAF, LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® Classic Secure Memory, MIFARE® DESFire® EV1 CSN, MIFARE® DESFire® Secure Memory, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 3 CSN (Felica), NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, TechnoGym (Key Fob) CSN, Urmet, XceedID® MIFARE® CSN Slim Profile USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
