WAVE ID® SP Plus LEGIC

The WAVE ID SP Plus LEGIC is an ultra-slim, multi-purpose credential reader for identification, authentication and logical access. Its small, thin form factor enables various integrated installations in recessed compartments, as well as external mounting configurations. Additionally, the WAVE ID SP Plus LEGIC can fit into a variety of purpose-built devices such as printers, time clocks, kiosks, or protective enclosures.

Contact Us Now

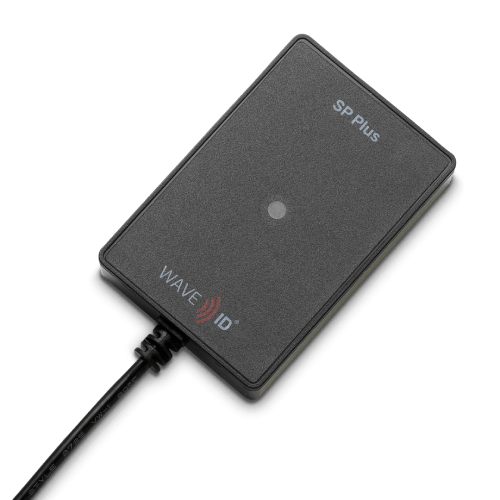

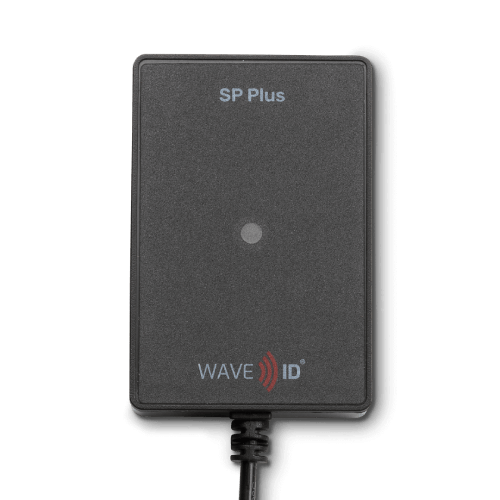

WAVE ID SP Plus reader WAVE ID SP WAVE SP Left
0
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>125/132 kHz, 13.56 MHz, and 2.4 GHz</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Power Consumption
<p>70 mA typical, 100 mA maximum</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Model Number
30LH*
Dimensions
0.6 in &times; 2 in &times; 3 in<span class="metric-conversion"> (1.5 cm &times; 5.1 cm &times; 7.6 cm)</span>
Weight
0.8 oz<span class="metric-conversion"> (22.1 g)</span>
Housing Color
<p>Black</p>
Cable Length
<p>6', 7", 5", &amp; 2.5" (Custom Lengths Available. Call our Sales department at (866) 439-4884)</p>
Indicators
<p>Quad-state LED indicator (green, amber, red) Adjustable beeper volume (off, low, medium, high)</p>
Form Factor
<p>Desktop, SP, Non-Housed</p>
Power Supply
<p>USB Self-powered</p>
Interface
<p>USB</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH. Contact rf IDEAS for additional global country certification details.</p>
Warranty
<p>One year for material/workmanship defects. <a href="/about-us/policies">See complete policy for details</a><a href="https://www.redesign8-m7yvgca-ftimtubo6a5qs.us-2.platformsh.site/page/warranty-information">.</a></p>
Compatible Operating Systems
<p>Windows XP®, 7®, 8.1®, 10® and Linux</p>
Additional Information
<p><strong>Accessories:</strong> Cables KT-SIM-SE-V2: HID Omnikey SAM*, KT-SIM-AV3: MIFARE SAM AV3</p> <p><strong>Protocol/Operating Mode:</strong> 125/132 kHz, 13.56 MHz, and 2.4 GHz</p> <p><strong>Secure Technology Type:</strong> LEGIC and MIFARE Secure</p>

Brochure

rfIDEAS_LEGIC Family Product Brochure_B-818.pdf

Data Sheet

rfideas-wave-id-sp-plus-legic-datasheet-pa159-legic.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID SP Plus Keystroke SP LEGIC Secure Black USB Reader RDR-30LH1EKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Slim Profile USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
