Specifications

Operating Conditions

Operating Frequency

13.56 MHz

Typical Maximum Read Range

2.0” – 4.0” (5.0 – 10.0 cm) with PVC ID cards; 1.0” – 1.5” (2.5 – 3.8 cm) with key fobs

Physical Characteristics

Dimensions
3.4 in × 2 in × 0.6 in(8.6 cm × 5.1 cm × 1.5 cm)
Weight
4 oz(113.4 g)
Housing Color

Desktop - Black, Pearl Surface Mount - Black, White

Mounting Options

Surface Mount housing can be easily mounted on panels, kiosks, and other indoor applications. It is designed for mounting with 1” #8 screws only (not included), at a maximum force of 6.25 in/lbs. The Desktop reader has an articulated cable for easy placement on desktops, counters, and more. The IP67 compliant readers must be installed according to the installation guide (enclosed with all units).

WAVE ID® and WAVE ID® Plus Surface Mount Only—When the IP67 Surface Mount reader is installed in accordance with the IP67 Surface Mount instructional guide

Cable Length

6”, 16” & 60” (Custom Lengths Available. Call our Sales department at (866) 439-4884

Indicators

Tri-state LED, dual-tone beeper

Power Supply

USB Self-powered; Serial RS-232 via a pass-thru PS/2 connector or power supply adapter: several power options exist

Interface

USB, Serial RS-232

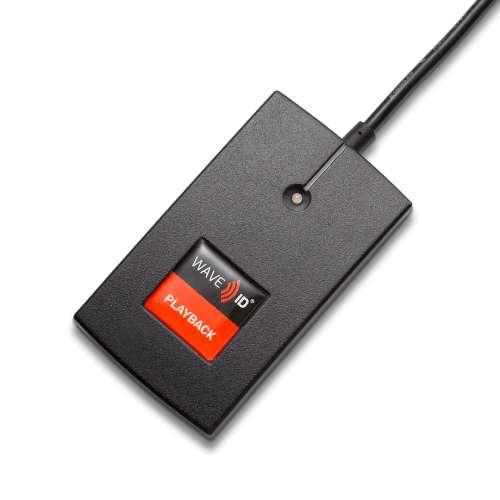

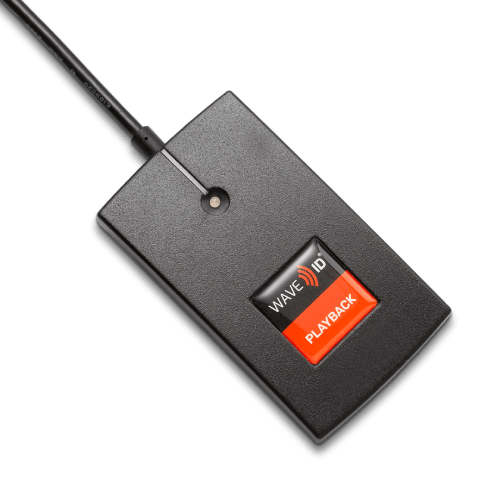

WAVE ID® Playback RS-232 reader easily interfaces to existing software, PLCs, point-of-sale terminals and other equipment

Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-30℃ to 65℃ (-22℉ to 150℉ )
Operating Humidity Range

5% to 95% relative humidity, non-condensing

Storage Temperature Range
-40℃ to 85℃ (-40℉ to 185℉ )

General Information

Certifications

FCC, United States; CE Mark, Europe; RCM-Australia; Industry Canada, RoHS, UL

Warranty

One year for material/workmanship defects; see complete policy for details

Additional Information

WAVE ID® and WAVE ID® Plus Surface Mount Only—When the IP67 Surface Mount reader is installed in accordance with the IP67 Surface Mount instructional guide
