Specifications

Operating Conditions

Operating Frequency

125 kHz or 13.56 MHz

Typical Maximum Read Range

1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions

Physical Characteristics

Dimensions
3.4 in × 2 in × 0.6 in(8.6 cm × 5.1 cm × 1.5 cm)
Weight
4 oz(113.4 g)
Housing Color

Desktop - Black, Pearl; Surface Mount - Black, White; Non-Housed

Mounting Options

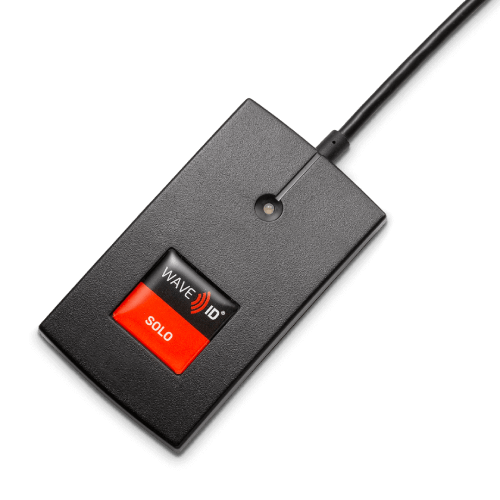

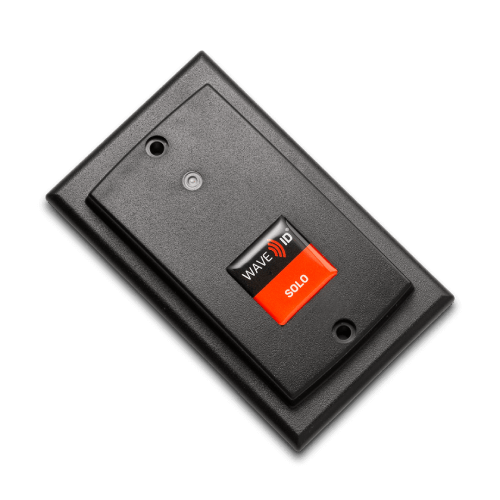

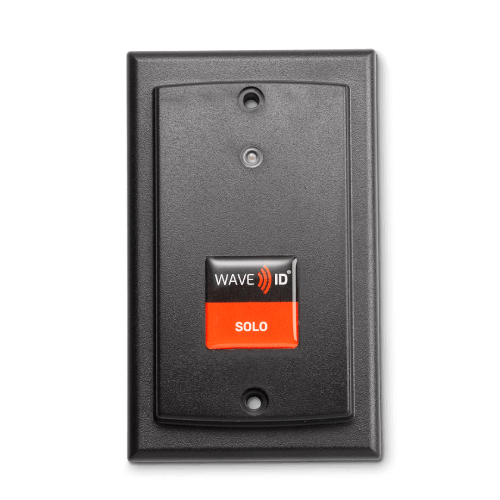

Desktop reader has an articulated cable for easy placement on desktops, counters, and more. Surface mount housing can be easily mounted on panels, kiosks, and other indoor applications. It is designed for mounting with 1” #8 screws only (not included), at a maximum force of 6.25 in/lbs. The IP67 compliant readers must be installed according to the installation guide (enclosed with all units).

Cable Length

6”, 16” & 60” (Custom Lengths Available. Call our Sales department at (866) 439-4884)

Indicators

Tri-state LED, dual-tone beeper. (Dual-tone beeper available on desktop and surface mount)

Power Supply

USB Self-powered; PoE; Serial RS-232: several power options exist

Interface

USB, Serial RS-232, Ethernet

Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-30℃ to 65℃ (-22℉ to 150℉ )
Operating Humidity Range

5% to 95% relative humidity, non-condensing

Storage Temperature Range
-40℃ to 85℃ (-40℉ to 185℉ )

General Information

Certifications

FCC, United States; CE Mark, Europe; RCM, Australia; IC-Industry Canada, UL. Environmental:  RoHS, REACH. For more information on other global certifications, contact [email protected].

Warranty

One year for material/workmanship defects. See complete policy for details.

Compatible Operating Systems

Windows XP, 7, 8, 10, Linux (Ubuntu, Red Hat), macOS and Android

Product Resources

Case Study

Data Sheet

Model Selector
Model NameSKUCard TechnologyData OutputHousing/Form FactorConnector
WAVE ID® Solo HID™ Prox Black USB Virtual COM Reader RDR-6081AK0 HID™ Prox Serial Desktop USB Virtual Com
WAVE ID® Solo Keystroke HID™ Prox Black USB Reader RDR-6081AKU HID™ Prox Keystroke Desktop USB-A
WAVE ID® Solo Keystroke HID™ Prox Black 6in USB Reader RDR-6081AKU-C06 HID™ Prox Keystroke Desktop USB-A
WAVE ID® Solo Keystroke HID™ Prox Black 16in USB Reader RDR-6081AKU-C16 HID™ Prox Keystroke Desktop USB-A
WAVE ID® Solo SDK HID™ Prox Black USB Reader RDR-6082AKU HID™ Prox Raw Data Desktop USB-A
WAVE ID® Solo SDK HID™ Prox Black 16in. USB Reader RDR-6082AKU-C16 HID™ Prox Raw Data Desktop USB-A
WAVE ID® Solo HID™ Prox Surface Mount Black 5v Pin9 RS232 Reader RDR-60W1AK5 HID™ Prox Serial Surface Mount Serial
WAVE ID® Solo Keystroke HID™ Prox Surface Mount Black USB Reader RDR-60W1AKU HID™ Prox Keystroke Surface Mount USB-A
Wave ID® Solo Keystroke CASI Black USB Reader RDR-6281AKU CASI-RUSCO Keystroke Desktop USB-A
Wave ID® Solo SDK CASI Black USB Reader RDR-6282AKU CASI-RUSCO Raw Data Desktop USB-A
Wave ID® Solo Keystroke Indala 26 bit Black USB Reader RDR-6381AKU Indala Keystroke Desktop USB-A
Wave ID® Solo SDK Indala 26 bit Black USB Reader RDR-6382AKU Indala Raw Data Desktop USB-A
Wave ID® Solo Keystroke ioProx Black USB Reader RDR-6781AKU Kantech ioProx Keystroke Desktop USB-A
Wave ID® Solo SDK AWID Black USB Reader RDR-6982AKU AWID Raw Data Desktop USB-A
WAVE ID® Solo Keystroke EM410x Black USB Reader RDR-6E81AKU EM 410x (4100/4102/4105/4200) Keystroke Desktop USB-A
WAVE ID® Solo SDK EM410x Black USB Reader RDR-6E82AKU EM 410x (4100/4102/4105/4200) Raw Data Desktop USB-A
Wave ID® Solo Keystroke Nexwatch Black 16in. USB Reader RDR-6N81AKU-C16 Honeywell Nexwatch Keystroke Desktop USB-A
Wave ID® Solo SDK Nexwatch Black USB Reader RDR-6N82AKU Honeywell Nexwatch Raw Data Desktop USB-A
WAVE ID® Solo Keystroke HID™ iCLASS ID w/SE Black USB Virtual COM Reader RDR-7081BK0 HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), Infineon my-d™ CSN, I-tag CSN, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN Serial Desktop USB Virtual Com
Wave ID® Solo Keystroke HID iCLASS ID# w/ SE Black USB Reader RDR-7081BKU HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS™ CSN, I-tag CSN, Infineon my-d™ CSN, ISO 14443A CSN, ISO 15693 CSN, LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN Keystroke Desktop USB-A
Wave ID® Solo SDK HID iCLASS ID# w/ SE Black USB Reader RDR-7082BKU HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS™ CSN, I-tag CSN, Infineon my-d™ CSN, ISO 14443A CSN, ISO 15693 CSN, LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN Raw Data Desktop USB-A
Wave ID® Solo 13.56MHz CSN Black 9v ext p.s. RS232 Reader RDR-7581AK7 HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN Serial Desktop Serial
Wave ID® Solo Keystroke 13.56MHz CSN Black USB Reader RDR-7581AKU HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN Keystroke Desktop USB-A
Wave ID® Solo Keystroke 13.56MHz CSN Pearl USB Reader RDR-7581APU HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN Keystroke Desktop USB-A
WAVE ID® Solo SDK 13.56MHz CSN Black 6in USB Reader RDR-7582AKU-C06 HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN Raw Data Desktop USB-A
WAVE ID® Solo SDK 13.56MHz CSN Black USB Reader RDR-7582AKU HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN Raw Data Desktop USB-A
WAVE ID® Solo SDK FeliCa Black USB Reader RDR-7F82AKU NFC Type 3 CSN (Felica) Raw Data Desktop USB-A
Wave ID® Solo Keystroke V2 LEGIC CSN Black USB Reader RDR-7L81AKU LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN Keystroke Desktop USB-A
Wave ID® Solo SDK V2 LEGIC CSN Black USB Reader RDR-7L82AKU LEGIC Advant CSN (ISO 15693 / 14443A), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN Raw Data Desktop USB-A
