WAVE ID® Writer

The WAVE ID Writer is your go-to reader/writer for NXP MIFARE® smart cards. Quickly plugging into a computer allows the user to write to contactless cards using the included software (WAVE ID® Card Manager) or the available Software Developer Kit (SDK). Write to any application area on a MIFARE technology contactless card, and allow users to set their own keys. When used with contactless cards, labels or tags, the WAVE ID Writer provides critical security features including RF data encryption, mutual authentication (user-defined) and unique keys. Ideal for point-of-sale terminals, equipment, and material checkout.

Contact Us Now

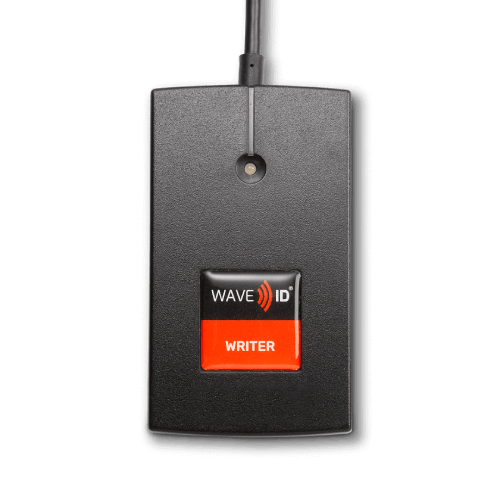

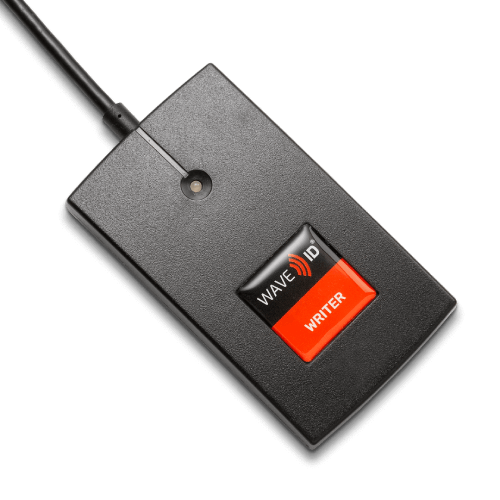

WAVE ID Writer WAVE ID Left WAVE ID Right
0
  • Specifications
  • Product Resources

Operating Conditions

Operating Frequency
<p>13.56 MHz</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Dimensions
3.4 in &times; 2 in &times; 0.6 in<span class="metric-conversion">(8.6 cm &times; 5.1 cm &times; 1.5 cm)</span>
Weight
4 oz<span class="metric-conversion">(113.4 g)</span>
Cable Length
<p>6'</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p>USB Self-powered; RS-232 model: via a pass-thru PS/2&nbsp;connector or power supply adapter</p>
Interface
<p>USB, Serial RS232</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-35&#8451; to 65&#8451; <span class="imperial-conversion">(238&#8457; to 339&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion">(233&#8457; to 358&#8457; )</span>

General Information

Certifications
<p>FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf&nbsp;IDEAS products are certified in various additional countries worldwide. Contact rf&nbsp;IDEAS for additional details.</p>
Warranty
<p>One year for material/workmanship defects.&nbsp;<a href="https://www.redesign8-m7yvgca-ftimtubo6a5qs.us-2.platformsh.site/page/warranty-information">See the complete&nbsp;policy for details</a></p>
Compatible Operating Systems
<p>Windows 7, 8, 10, Linux, macOS and Android</p>

Case Study

rf_IDEAS_Poultry_Processing_Plant_Case_Study_UC-603A.pdf

Data Sheet

WAVE_ID_Writer_PA-129A.pdf
