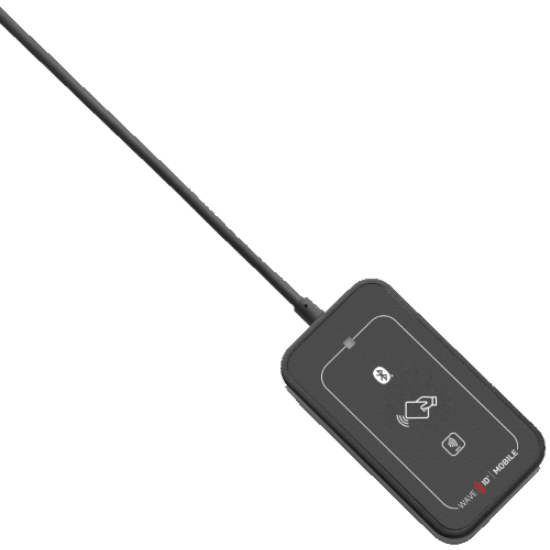

WAVE ID® Mobile Mini Reader

This dual-frequency reader offers Bluetooth® low energy technology for reading proximity (125/132 kHz) or contactless smart cards (13.56 MHz) and mobile credentials. With a dual card reader and Bluetooth low energy module in one device, installation only requires one USB port—freeing additional ports for other peripherals. Four credential configurations (up to three card types and one mobile) accommodate multi-card environments, with the added flexibility of using smartphones for authentication. A user-selectable volume control includes a beeper on/off setting for noise-sensitive areas.

Contact Us Now
wave id mobile mini reader
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>125 kHz or 13.56 MHz; 2.4 GHz (BLE)</p>
Supported Card Types
<p>Supports nearly all physical card types worldwide; contact rf IDEAS for specific card type questions.</p>

Physical Characteristics

Model Number
RDR-30531EKU Mini Desktop Keystroking Reader
Dimensions
2.9 in &times; 1.7 in &times; 0.5 in<span class="metric-conversion"> (7.4 cm &times; 4.2 cm &times; 1.3 cm)</span>
Weight
3 oz<span class="metric-conversion"> (86 g)</span>
Cable Length
<p>6’ standard; 6” and 16” lengths available</p>
Indicators
<p>LED indicator (green, amber, red)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p>USB powered</p>
Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-25&#8451; to 65&#8451; <span class="imperial-conversion"> (-13&#8457; to 149&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH. For more information on other global certifications, contact sales@RFIDeas.com.</p>
Warranty
<p>One year for material/workmanship defects. See complete policy for details.</p>
Compatible Operating Systems
<p>Windows XP®, 7®, 8.1®, 10® and Linux®</p>
Additional Information
<p><strong>BLUETOOTH FEATURES</strong></p> <p>Mobile Credentials Supported: Orange PACK ID®; WAVE ID® Mobile; PSIA PKOC</p> <p>BLE Beaconing: Configurable for Eddystone, Alt Beacon and iBeacon (requires the WAVE ID Mobile Configurator utility)</p> <p>Supported Protocols: Bluetooth 5.3</p>

Data Sheet

rf-ideas-wren-migration-one-pager-pa-153d.pdf

Data Sheet

rf IDEAS Wren Migration One-Pager_PA-153C.pdf

Data Sheet

WAVE ID_Mobile Mini_Datasheet_PA-148_Rev A .pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Mobile Mini Keystroke Black USB Reader RDR-30531EKU HID™ Prox, Orange PACK ID, PSIA PKOC, WAVE ID Mobile, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck (128 Bits), ID Teck UID, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, TechnoGym (Key Fob) CSN, Urmet, XceedID® MIFARE® CSN, Sony FeliCa CSN Desktop USB-A
WAVE ID Plus Mini w/iCLASS SE &amp; Seos Black Virtual COM Reader RDR-80031BK0 HID™ Prox, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck (128 Bits), Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, TechnoGym (Key Fob) CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN Serial Desktop USB Virtual Com
WAVE ID Plus Mini w/iCLASS SE &amp; Seos Black 5v Pin9 RS-232 Reader RDR-80031BK5 HID™ Prox, HID™ iCLASS, HID™ iCLASS™ CSN, HID™ iCLASS SE™, HID™ iCLASS Seos™, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), Indala, Honeywell Nexwatch, Kantech ioProx, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck (128 Bits), ID Teck UID, ISONAS™, I-tag CSN, Infineon my-d™ CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC Advant CSN (ISO 15693 / 14443A), NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, MIFARE® DESFire® Secure Memory, TechnoGym (Key Fob) CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN Serial Desktop Serial
Wave ID® Plus Mini SDK V2 w/ iCLASS ID &amp; SEOS Black Virtual COM Reader RDR-80032BK0 HID™ Prox, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, LEGIC Advant CSN (ISO 15693 / 14443A), aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck (128 Bits), Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 1 CSN (Topaz), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, TechnoGym (Key Fob) CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN Serial Desktop USB Virtual Com

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
