WAVE ID® Plus Surface Mount

As our most feature-rich offering, the WAVE ID Plus Surface Mount card readers maximize the value of new and existing ID badges by providing simultaneous processing of contactless and proximity smart cards. This dual-frequency card reader, now with USB-C compatibility, performs at the highest technical standards while serving diverse applications with our signature ease of use. Also available in an SDK compatible model, it can integrate into most software or hardware through the use of the rf IDEAS® Universal Software Developer’s Kit (SDK). This multi-technology reader delivers flexibility to any customer, integrator or end user struggling with different card technologies. In use with the rf IDEAS Configuration Utility, the WAVE ID Plus Surface Mount card reader also functions as a comprehensive card analyzer for determining compatible readers.

Contact Us Now

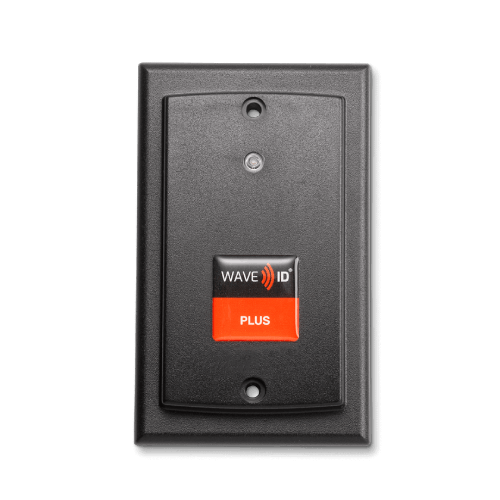

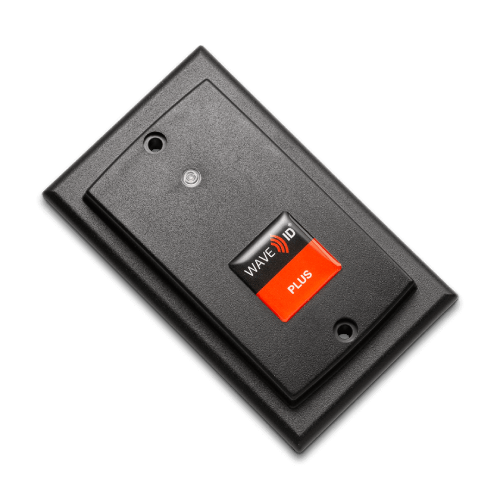

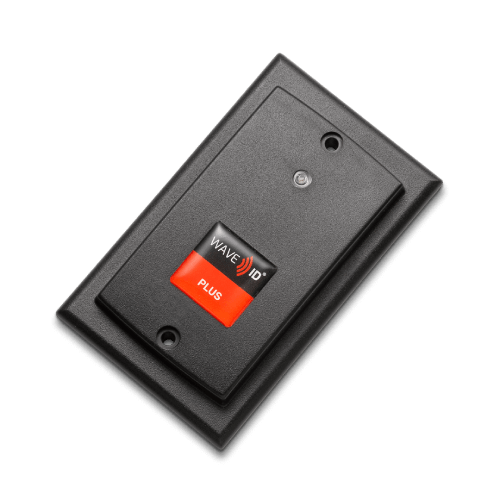

WAVE ID Plus Surface Mount WAVE ID Plus Surface Mount (Left) WAVE ID Plus Surface Mount (right)
0
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>125/132 kHz and 13.56 MHz</p>
Power Consumption
<p>70 mA typical, 150 mA maximum</p>
Supported Card Types
<p>Visit <a href="/cardcompatibility">card compatibility</a> for a full list of supported card types.</p>

Physical Characteristics

Model Number
805 - 800 - 80M
Dimensions
4.5 in &times; 2.8 in &times; 0.6 in<span class="metric-conversion"> (11.4 cm &times; 7 cm &times; 1.6 cm)</span>
Weight
2.5 oz<span class="metric-conversion"> (70.9 g)</span>
Housing Color
<p>Black</p>
Mounting Options
<p><strong>KT-IP67</strong> - IP67 rated housing kit. To achieve IP67 compliance, the IP67 Installation Guide included in your product box must be followed.</p>
Cable Length
<p>13 inches (33cm)/(Custom Lengths Available)</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Power Supply
<p>USB-A,C self-powered; some RS-232 and Ethernet models require external power source</p>
Interface
<p><strong>805/800:</strong> USB-A,C/Virtual Com/RS-232 Serial/Ethernet</p> <p><strong>80M:</strong> USB-A,C</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 149&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, noncondensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH</p>
Warranty
<p>One year for material/workmanship defects. See complete policy for details.</p>
Compatible Operating Systems
<p>Windows 10 (32 &amp; 64 bit), 11 (64 bit), MacOS Monterey and above, Linux</p>
Additional Information
<p><strong>Configuration Utilities:</strong> rf IDEAS Configuration Utility, Smart Card Manager, Remote Reader Management Tool. Visit <a href="/support/tools/downloads">rfideas support tools</a> for the configuration tool compatible with your operating system</p> <p><strong>Protocol/Operating Mode:</strong><br><strong>805:</strong> Keystroke or rf IDEAS SDK or CCID&nbsp;<br><strong>800:</strong> Keystroke or rf IDEAS SDK&nbsp;<br><strong>80M: </strong>Keystroke</p>

Data Sheet

WAVE ID Plus Surface Mount Family Datasheet_PA-163.pdf

Manual

Desktop_Surface Mount_Cleaning Guide_PA-144.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Plus w/iCLASS SE &amp; Seos Surface Mount Black 5v ext ps RS-232 Reader RDR-800W1BK8 HID™ Prox, AWID, CASI-RUSCO, Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), LEGIC Advant CSN (ISO 15693 / 14443A), ID Teck (128 Bits), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus w/iCLASS &amp; Seos Surface Mount Black EtherNet/IP PoE Reader RDR-800W1BKB-P HID™ Prox, AWID, CASI-RUSCO, Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), LEGIC Advant CSN (ISO 15693 / 14443A), ID Teck (128 Bits), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus w/ iCLASS ID Surface Mount Black TCP/IP Ethernet POE Reader RDR-800W1BKE-P HID™ Prox, AWID, CASI-RUSCO, Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), LEGIC Advant CSN (ISO 15693 / 14443A), ID Teck (128 Bits), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black 5v Pin 9 RS-232 Reader RDR-805W1BK5 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black 9v Pin 9 RS-232 Reader RDR-805W1BK6 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black 9v ext p.s. RS-232 Reader RDR-805W1BK7 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black 5v USB pwr tap RS-232 Reader RDR-805W1BK9 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black EtherNet/IP PoE Reader RDR-805W1BKB-P aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Surface Mount Black TCP/IP Ethernet PoE Reader RDR-805W1BKE-P aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount Serial
WAVE ID Plus Keystroke Surface Mount Black USB Reader RDR-805W1BKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Surface Mount USB-A
WAVE ID Plus SDK Surface Mount Black Virtual COM Reader RDR-805W2BK0 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Raw Data Surface Mount USB Virtual Com
WAVE ID Plus SDK Surface Mount Black USB Reader RDR-805W2BKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Raw Data Surface Mount USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
