WAVE ID Mobile Mini / WAVE ID SP Plus Readers for HID Mobile Access

Today, mobility is critical for busy executives, manufacturing professionals, employees working remotely, students, healthcare workers and government staff alike. The WAVE ID Mobile Reader for HID Mobile Access is a dual-frequency credential reader that reads both proximity cards (125/132 kHz) and contactless smart cards (13.56 MHz), and interacts with Bluetooth® Low Energy Technology-enabled mobile devices. Employing the industry-leading HID Mobile Access credential, it is the ideal technology investment to enable mobile authenticationin an unlimited number of applications—all while supporting existing infrastructures.

Contact Us Now

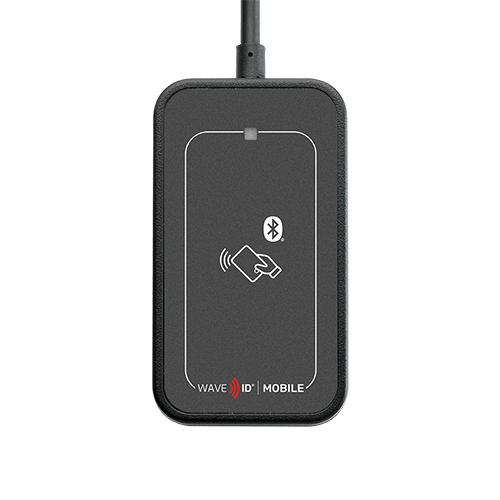

WAVE ID Mobile Mini Reader WAVE ID SP Plus WAVE-ID-_SP_Plus_LT_0319 WAVE-ID-_SP_Plus_RT_0312
0
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications - Mobile Mini
  • Specifications - SP Plus
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>125 kHz (LF) and 13.56 MHz (HF); 2.4 GHz (BLE)</p>
Power Consumption
<p>65 mA typical, 255 mA maximum</p>
Supported Card Types
<p>Supports nearly all physical card types worldwide; contact rf IDEAS for specific card type questions or view our list here: <a href="https://www.rfideas.com/support/tools/supported-card-types">https://www.rfideas.com/support/tools/supported-card-types</a></p>

Physical Characteristics

Model Number
RDR-30531EKU Mini Desktop Keystroking Reader
Dimensions
2.9 in &times; 1.7 in &times; 0.5 in<span class="metric-conversion"> (7.4 cm &times; 4.2 cm &times; 1.3 cm)</span>
Weight
3 oz<span class="metric-conversion"> (86 g)</span>
Housing Color
<p>Black</p>
Cable Length
<p>6’ (152.4mm) standard; Contact rf IDEAS for other options</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p>USB-A,C self-powered</p>
Interface
<p>USB</p>
Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 149&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH</p>
Warranty
<p>One year for material/workmanship defects. <a href="/about-us/policies">See complete policy for details.</a></p>
Compatible Operating Systems
<p>Windows 10 (34 &amp; 64 bit),11® (64 bit), MacOS Monterey and above, Linux Linux Ubuntu 20.04 and above (64bit) Chromium Web Browsers (WebSDK), Google Chrome (Linux, Mac, or ChromeOS), Microsoft Edge (Linux &amp; MacOS), Opera (Linux), Android 14 and below**, Rasberry Pi 3b &amp; Pi 4 (Debian 11 Bullseye (64 &amp; 32 bit)&nbsp;<br>** Android - versions 10 and above require custom firmware</p>
Additional Information
<p><strong>Accesories</strong></p> <p><strong>BKT-MINI: </strong>Mini Desktop Mounting Bracket<br><strong>KT-ANGLE-MINI: </strong>WAVE ID Black Angle Mini Mounting Bracket<br><strong>KT-ANGLE-MINI+CLIPS: </strong>WAVE ID Black Angle Mini Mounting Bracket w/Cable Clips<br><strong>KT-FLAT-MINI: </strong>WAVE ID Black Angle Mini Mounting Dual Lock Kit</p>

Operating Conditions

Operating Frequency
<p>125/132 kHz, 13.56 MHz and 2.4 GHz (BLE)</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Power Consumption
<p>70 mA typical, 100 mA maximum</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Model Number
WAVE ID SP Plus: 805H, 800H, 80MH, 30LH; WAVE ID Mobile SP Plus:300H, 30MH, 30LH
Dimensions
3 in &times; 2 in &times; 0.6 in<span class="metric-conversion"> (7.6 cm &times; 5.1 cm &times; 1.5 cm)</span>
Weight
0.8 oz<span class="metric-conversion"> (22.1 g)</span>
Housing Color
<p>Black</p>
Cable Length
<p>6', 7", 5", &amp; 2.5" (Custom Lengths Available. Call our Sales department at (866) 439-4884)</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop, SP, Non-Housed</p>
Power Supply
<p>USB Self-powered</p>
Interface
<p>USB-A</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH.<br>Contact rf IDEAS for additional global country certification details.</p>
Warranty
<p>One year for material/workmanship defects. <a href="/about-us/policies">See complete policy for details</a><a href="https://www.redesign8-m7yvgca-ftimtubo6a5qs.us-2.platformsh.site/page/warranty-information">.</a></p>
Compatible Operating Systems
<p>Windows XP®, 7®, 8.1®, 10® and Linux</p>

Brochure

8217C_RFID_UniveralWallet_Infographic_RFID-48_021226_IV5.pdf

Data Sheet

rfIDEAS_Mobile for HID Mobile Access Datasheet_PA-134B.pdf

Use Case

Mobile_Enterprise_Use_Case_UC-607.pdf

Use Case

Mobile_Healthcare_Use_Case_UC-606.pdf

Use Case

Mobile_Education_Use_Case_UC-608.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Mobile Keystroke HID Mobile Access Black USB Reader RDR-30031EKU-MXS HID™ Prox, Orange PACK ID, PSIA PKOC, WAVE ID Mobile, HID Mobile Access, AWID, CASI-RUSCO, Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™, HID Apple Wallet, HID Google Wallet, ISO 14443A CSN, MIFARE® Ultralight CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck UID, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, Urmet, XceedID® MIFARE® CSN, Sony FeliCa CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), ISO 15693 CSN, LEGIC Advant CSN (ISO 15693 / 14443A), ID Teck (128 Bits), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Desktop USB-A
WAVE ID Mobile SP Keystroke HID Mobile Access &amp; MIFARE Secure Black USB Reader RDR-300H1EKU-M-MXS HID™ Prox, Orange PACK ID, PSIA PKOC, WAVE ID Mobile, HID Mobile Access, Allegion HCE, AWID, CASI-RUSCO, ECP2.0, Honeywell Nexwatch, Indala, Kantech ioProx, HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 15693 CSN, MIFARE® Ultralight CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck UID, Infineon my-d™ CSN, ISONAS™, I-tag CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE 2GO, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey e*tag® CSN, SecuraKey-02 Radio Key®, Urmet, XceedID® MIFARE® CSN, MIFARE® Classic Secure Memory, MIFARE® DESFire® EV1 CSN, MIFARE® DESFire® Secure Memory, Sony FeliCa CSN, EM 410x (4100/4102/4105/4200), NFC Type 3 CSN (Felica), LEGIC Advant CSN (ISO 15693 / 14443A), ID Teck (128 Bits), NFC Type 1 CSN (Topaz), TechnoGym (Key Fob) CSN Slim Profile USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
