WAVE ID® Nano

It is the world’s smallest badge reader. The WAVE ID Nano reader delivers all the features of desktop and surface-mount readers in an ultra-compact format. It is available for use with the traditional USB-A port or in an even smaller USB-C version to fit newer laptops, tablets and smartphones.

Both options are designed with an ultra-compact profile to minimize physical interference or any risk of breakage. In addition, the USB-C version complies with select MIL-STD-810 requirements to resist extremes of altitude, temperature, humidity, dust, vibration, shock and freeze/thaw cycles. They are ideal for first responders, military professionals or anyone who appreciates worry-free reliability.

With their small size, WAVE ID Nano readers can also be easily embedded in monitors, all-in-one PC’s and other hardware. Designed for on-the-go portability, they enable healthcare, government, manufacturing and enterprise employees to work remotely or move about freely, in any environment, while keeping valuable information reliably protected.

Contact Us Now

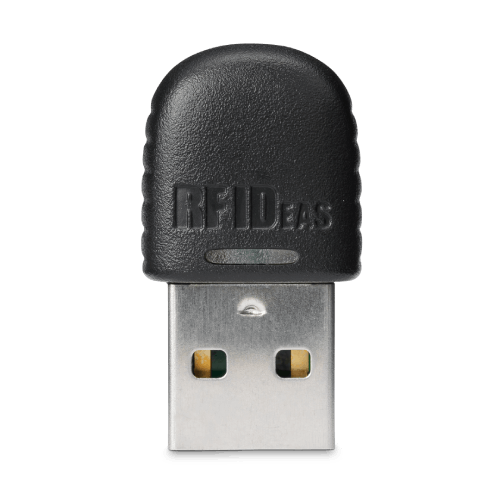

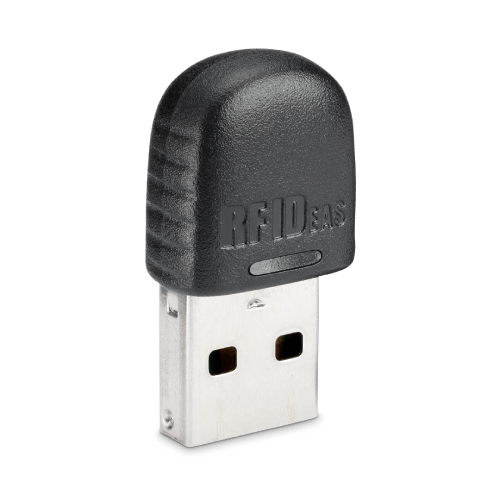

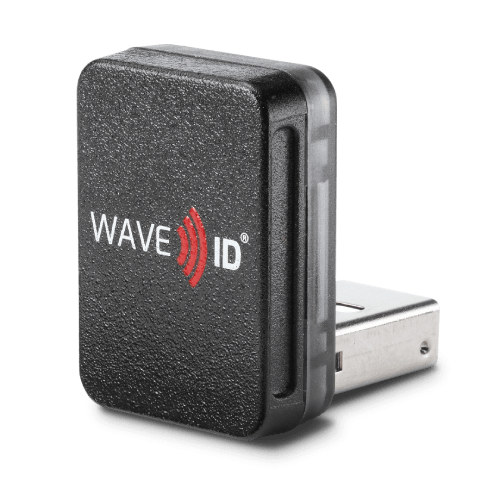

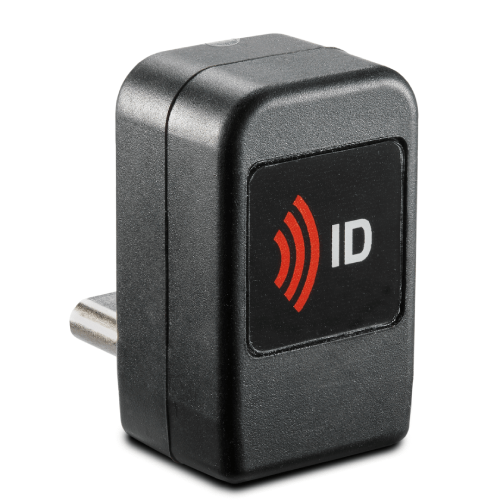

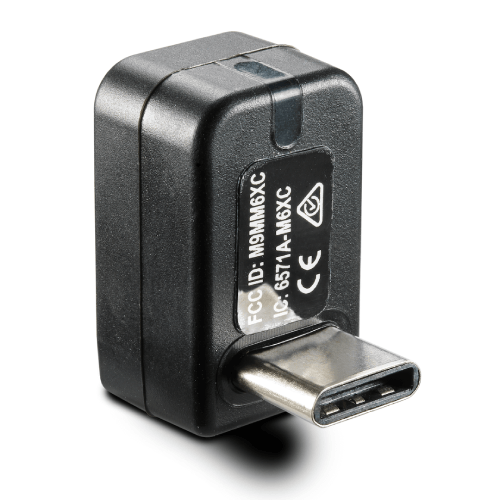

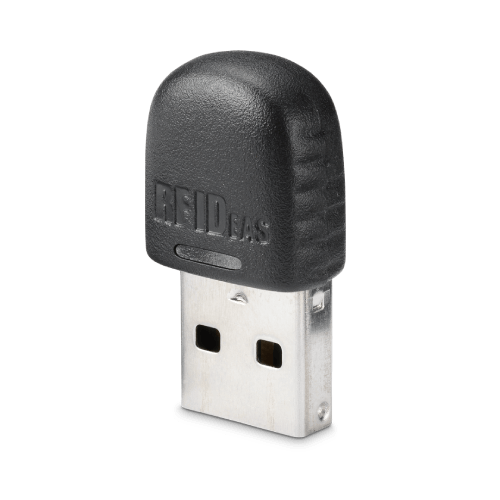

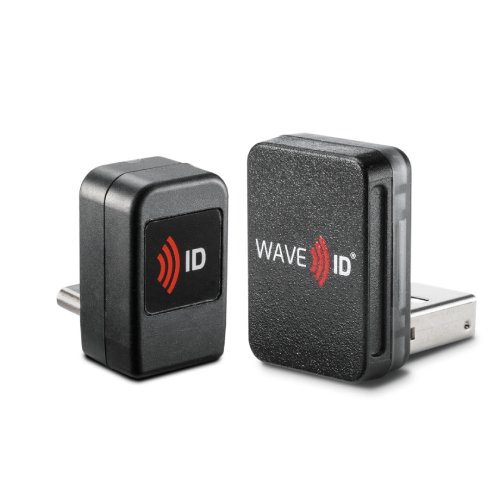

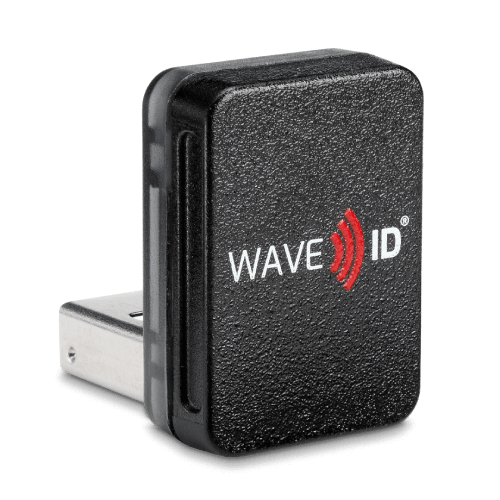

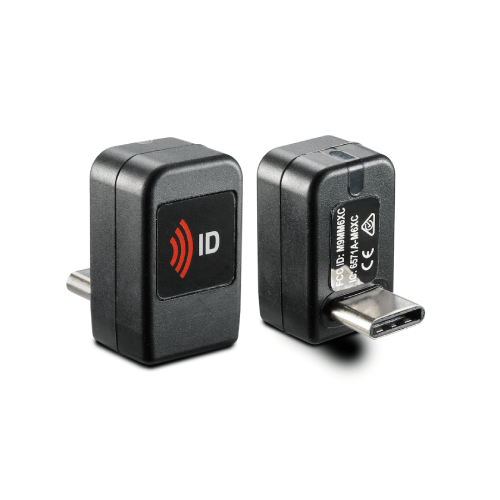

WAVE ID® Nano (Group) WAVE ID® Nano USB-C (Front) WAVE ID® Nano USB-C (Back) WAVE ID® Nano USB-C (Group) Nano Vertical Left WAVE ID Nano Lifestyle Nano Reader Wave ID Nano reader WAVE ID Nano Horizontal WAVE ID Nano Horizontal Left WAVE ID Nano Horizontal Right
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p>Dual 125 or 132 kHz or 13.56 MHz</p>
Typical Maximum Read Range
<p>&lt; 1" dependent upon card type and environmental conditions</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Dimensions
0.9 in &times; 0.6 in &times; 0.8 in<span class="metric-conversion"> (2.2 cm &times; 1.6 cm &times; 1.9 cm)</span>
Weight
0.2 oz<span class="metric-conversion"> (5.7 g)</span>
Cable Length
<p>Not applicable</p>
Indicators
<p>Quad-state LED (off, green, amber, red)</p>
Form Factor
<p>Vertical, Horizontal, Non-Housed</p>
Power Supply
<p>USB self-powered</p>
Interface
<p>USB</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf&nbsp;IDEAS products are certified in various additional countries worldwide. Contact rf&nbsp;IDEAS for additional details.</p>
Compatible Operating Systems
<p>Windows 7®, 8®, 10® and Linux</p>

Application Brief

Single_Sign-On_with_Envoy_Data_Application_Brief_AB-411.pdf

Data Sheet

rf IDEAS WAVE ID Nano Family Datasheet.pdf

Data Sheet

WAVE_ID_Nano_USB-C_One_Pager_UC-606.pdf

Use Case

WAVE_ID_Nano_USB-C_Use_Case_UC-606.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
Wave ID® Nano Keystroke 13.56MHz CSN OEM USB Reader OEM-7521AXU HID™ iCLASS™ CSN, NFC Type 3 CSN (Felica), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, NFC Type 1 CSN (Topaz), CEPAS CAN Raw Data Non-Housed USB-A
Wave ID® Nano SDK 13.56MHz CSN OEM USB Reader OEM-7522AXU HID™ iCLASS™ CSN, NFC Type 3 CSN (Felica), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, NFC Type 1 CSN (Topaz), CEPAS CAN Raw Data Non-Housed USB-A
Wave ID® Nano Keystroke HID™ Prox V2 Black Vertical USB Reader RDR-6011AKU-V2 HID™ Prox Nano USB-A
Wave ID® Nano SDK HID™ Prox V2 Black Vertical USB Reader RDR-6012AKU-V2 HID™ Prox, HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica) Raw Data Nano USB-A
Wave ID® Nano Keystroke HID™ Prox Black Horizontal USB Reader RDR-6021AKU HID™ Prox Nano USB-A
Wave ID® Nano SDK HID™ Prox Black Horizontal USB Reader RDR-6022AKU HID™ Prox Raw Data Nano USB-A
Wave ID® Nano Keystroke HID Prox Black Vertical USB-C Reader RDR-60U1AKU HID™ Prox Nano USB-C
Wave ID® Nano SDK HID Prox Black Vertical USB-C Reader RDR-60U2AKU HID™ Prox Raw Data Nano USB-C
WAVE ID® SDK Casi V2 Black Vertical USB Nano Reader RDR-6212AKU-V2 Raw Data Nano USB-A
Wave ID® Nano Keystroke HID iCLASS SE &amp; Seos Black Vertical USB Reader RDR-7011AKU HID™ iCLASS Seos™, HID™ iCLASS, HID™ iCLASS SE™ Nano USB-A
Wave ID® Nano SDK 13.56MHz w/iCLASS SE &amp; Seos Black Vertical USB-C Reader RDR-7012AKU HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™ Raw Data Nano USB-A
Wave ID® Nano Keystroke 13.56MHz w/iCLASS SE &amp; Seos Black Vertical USB-C Reader RDR-70U1AKU HID™ iCLASS, HID™ iCLASS SE™, HID™ iCLASS Seos™ Nano USB-C
Wave ID® Nano Keystroke 13.56MHz CSN Black Vertical USB Reader RDR-7511AKU CEPAS CAN, HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica) Nano USB-A
Wave ID® Nano SDK 13.56MHz CSN Black Vertical USB Reader RDR-7512AKU CEPAS CAN, HID™ iCLASS™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica) Raw Data Nano USB-A
Wave ID® Nano Keystroke 13.56MHz CSN Black Vertical USB-C Reader RDR-75U1AKU HID™ iCLASS™ CSN, NFC Type 3 CSN (Felica), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, NFC Type 1 CSN (Topaz), CEPAS CAN Nano USB-C
Wave ID® Nano SDK 13.56MHz CSN Black Vertical USB-C Reader RDR-75U2AKU HID™ iCLASS™ CSN, NFC Type 3 CSN (Felica), MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, NFC Type 1 CSN (Topaz), CEPAS CAN Raw Data Nano USB-C
WAVE ID Nano CCID 13.56MHz CSN Black Vertical USB-C Reader RDR-75U6AKU Feitian Key Type-A, Feitian Key Type-C, Yubikey NFC, Identiv Key, Sentry*, Thales IdPrime, ATKey Card*, Idemia* CCID Nano USB-C

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
