WAVE ID® Bio

Multi-factor authentication provides the highest level of security for access to healthcare medication carts, financial records, government networks and more. Biometric authentication using a fingerprint is the simplest, most convenient way to uniquely identify users wherever they go, providing the “something you are” in multi-factor authentication protocols. For the “something you have,” as well as for applications that require only single-factor authentication, enterprises increasingly need to support a variety of user credentials—from 125/132 kHz proximity cards to 13.56 MHz smart cards and the new generation of contactless mobile credentials. WAVE ID Bio Readers support all of these technologies in one sleek, modern device.

Contact Us Now

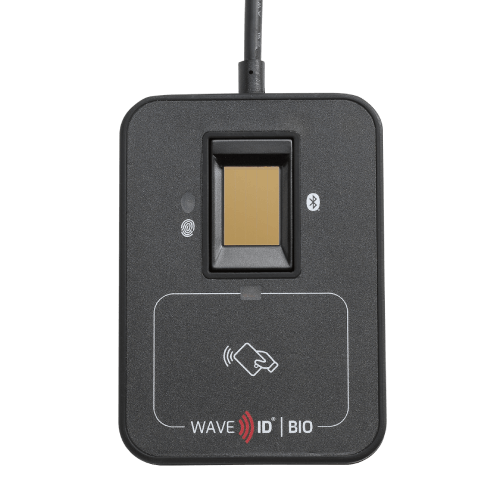

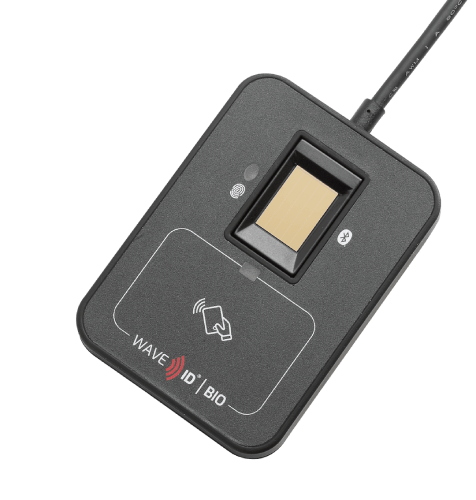

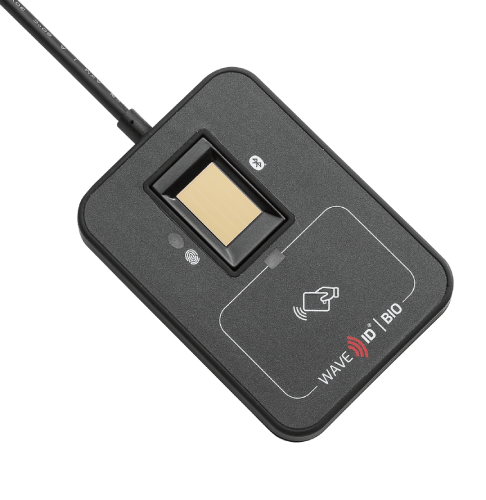

WAVE ID® Bio Teaser reader WAVE ID® Bio Left WAVE ID® Bio Right
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p><span>Dual 125/132 kHz and 13.56 MHz</span></p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>

Physical Characteristics

Dimensions
3.5 in &times; 2.5 in &times; 0.6 in<span class="metric-conversion"> (8.9 cm &times; 6.4 cm &times; 1.5 cm)</span>
Weight
1.7 oz<span class="metric-conversion"> (48.2 g)</span>
Housing Color
<p><span>Black (gray inlay)</span></p>
Cable Length
<p>6’ standard; 6” and 16” lengths available</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p><span>USB powered</span></p>
Interface
<p>USB</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to -101&#8451; <span class="imperial-conversion"> (-22&#8457; to -150&#8457; )</span>
Operating Humidity Range
<p><span>5% to 95% relative humidity, non-condensing</span></p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf&nbsp;IDEAS products are certified in various additional countries worldwide. Contact rf&nbsp;IDEAS for additional details.</p>
Warranty
<p>One year for material/workmanship defects. See complete policy for details.</p>
Compatible Operating Systems
<p>Windows 7, 8, 10, and Linux</p>
Additional Information
<p>In addition to the Safetrust Wallet mobile credential, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a> for a full list of supported card types</p>

Application Brief

Single_Sign-On_with_Envoy_Data_Application_Brief_AB-411.pdf

Data Sheet

Imprivata_Bio_PA_141.pdf

Data Sheet

WAVE_ID_Bio_PA125.pdf

User Guide

WAVE_ID_Bio_CleaningRecommendations_PA135.pdf

Video

Tech Tip Video - WAVE ID Bio Configuration.mp4

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Bio SDK Badge, BLE &amp; Fingerprint Combo Black USB Reader RDF-30542AKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Sony FeliCa CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Raw Data Desktop USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
