WAVE ID® Embedded OEM Portfolio

Our next-generation OEM readers deliver a new level of flexibility and modular design for seamless integration in a wide array of products. OEMs can rapidly introduce off-the-shelf WAVE ID® authentication technologies for enhanced safety and security.

We support all single- and dual-frequency reader solutions with a collaborative approach to helping you shorten your time-to-market, lower overall development cost risks and provide end users with high-quality solutions that meet their emerging authentication needs.

Contact Us Now

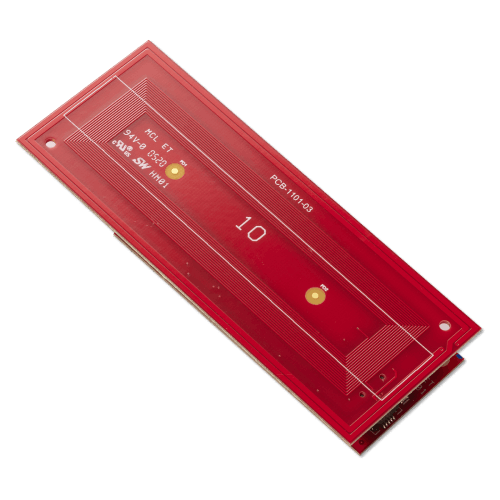

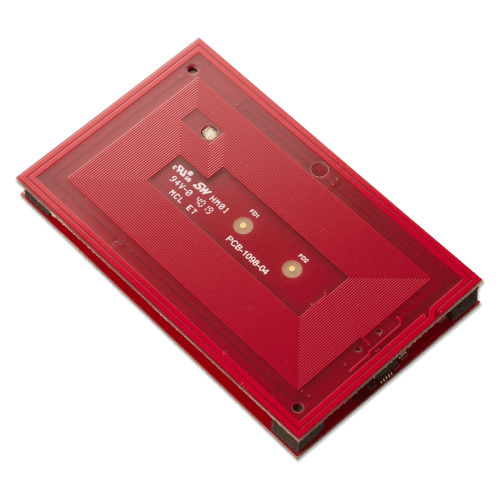

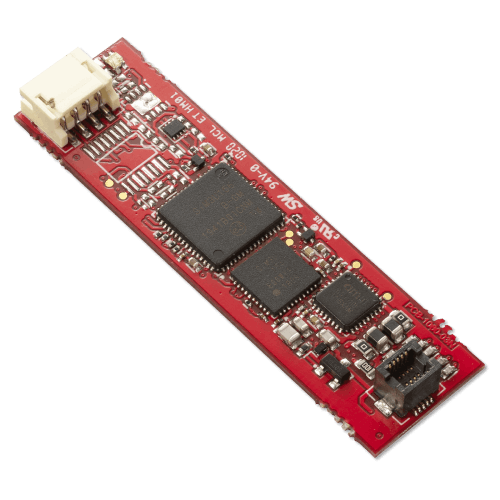

Embedded OEM Micro Embedded OEM Embedded OEM Pico
Specifications

Operating Conditions

Operating Frequency

Dual 125/132 kHz or 13.56 MHz

Typical Maximum Read Range

1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions

Supported Card Types

For a full list of supported card types, click here.

Physical Characteristics

Dimensions
2 in × 1.3 in × 0.7 in(5 cm × 3.3 cm × 1.7 cm)
Weight
0.4 oz(11.3 g)
Cable Length

6”, 12” & 6' (Custom Lengths Available. Call our Sales department at (866) 439-4884)

Indicators

Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)

Form Factor

OEM

Power Supply

USB powered

Interface

USB, UART, Serial, Ethernet

Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30℃ to 65℃ (243℉ to 339℉ )
Operating Humidity Range

5% to 95% relative humidity, non-condensing

Storage Temperature Range
-40℃ to 85℃ (233℉ to 358℉ )

General Information

Certifications

FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment: RoHS, REACH. rf IDEAS products are certified in various additional countries worldwide. Contact rf IDEAS for additional details.

Warranty

One year for material/workmanship defects. See complete policy for details.

Compatible Operating Systems

Windows 7, 8, 10, and Linux

Product Resources

Application Brief

Brochure

Case Study

List of SKU's

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
Wave ID® Plus Keystroke OEM module USB Reader OEM-805N1AKU HID™ Prox, HID™ iCLASS™ CSN, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), Honeywell Nexwatch, Indala, Kantech ioProx, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 15693 CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, Corbin Russwin® UID, DIGITAG, Farpointe Data Pyramid, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck UID, I-tag CSN, Infineon my-d™ CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Philips/NXP, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, XceedID® MIFARE® CSN Non-Housed USB-A
Wave ID® Plus SDK OEM module USB Reader OEM-805N2AKU HID™ Prox, HID™ iCLASS™ CSN, AWID, CASI-RUSCO, EM 410x (4100/4102/4105/4200), Honeywell Nexwatch, Indala, Kantech ioProx, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, ISO 14443A CSN, ISO 15693 CSN, aptiQ™ MIFARE® CSN, Bosch ReadyKey Pro UID, Cardax UID, CDVI, Corbin Russwin® UID, DIGITAG, Farpointe Data Pyramid, GProx-II UID, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, ID Teck UID, I-tag CSN, Infineon my-d™ CSN, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Philips/NXP, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, XceedID® MIFARE® CSN Raw Data Non-Housed USB-A
*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
