Specifications

Operating Conditions

Operating Frequency

Dual 125 kHz and 13.56 MHz

Typical Maximum Read Range

1.0” – 3.0” (2.5 – 7.6cm) depending on proximity card type and environmental conditions

Power Consumption

USB units: Typical 70 mA, maximum 100 mA

Serial units: Typical 75 mA, maximum 110 mA

Supported Card Types

For a full list of supported card types, click here

Physical Characteristics

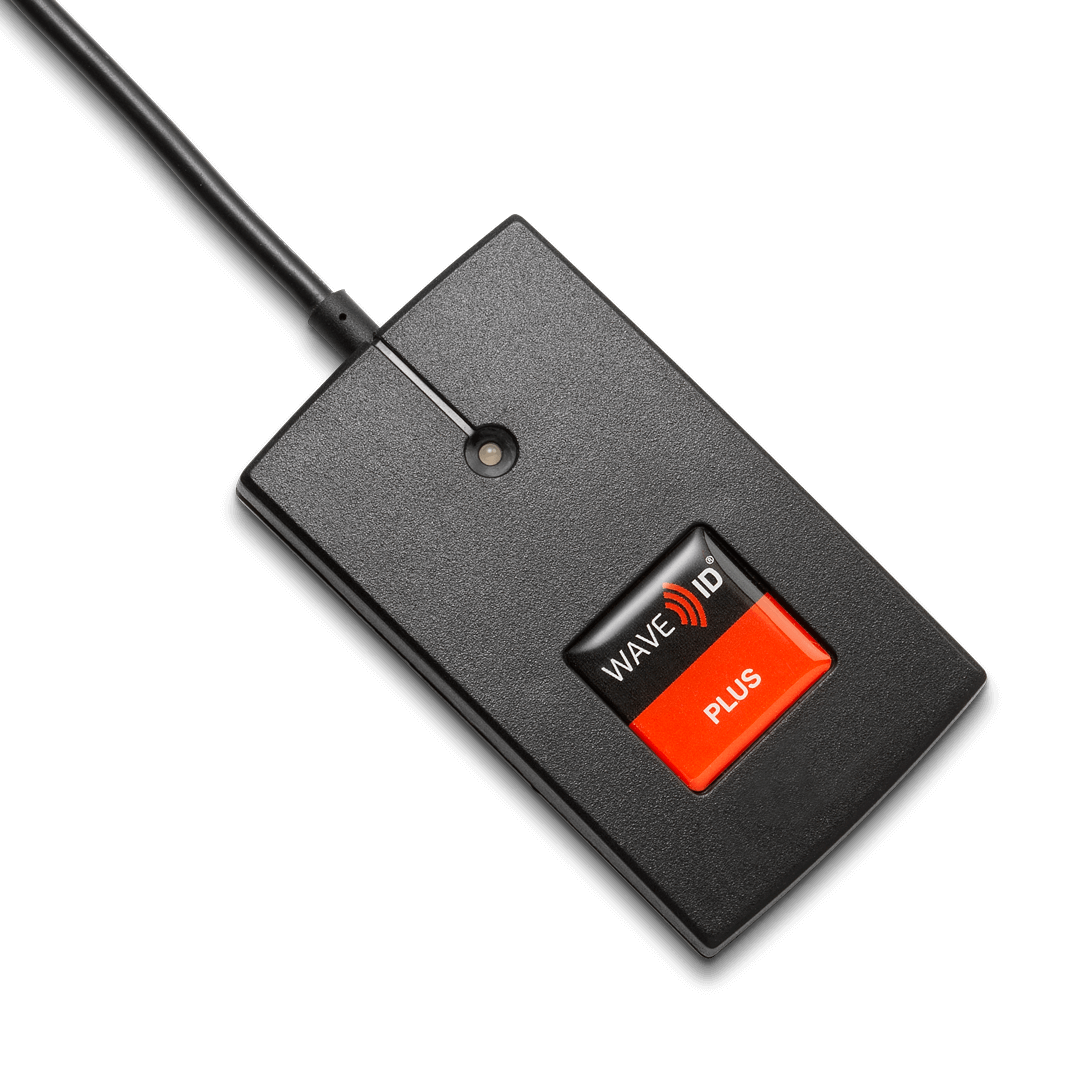

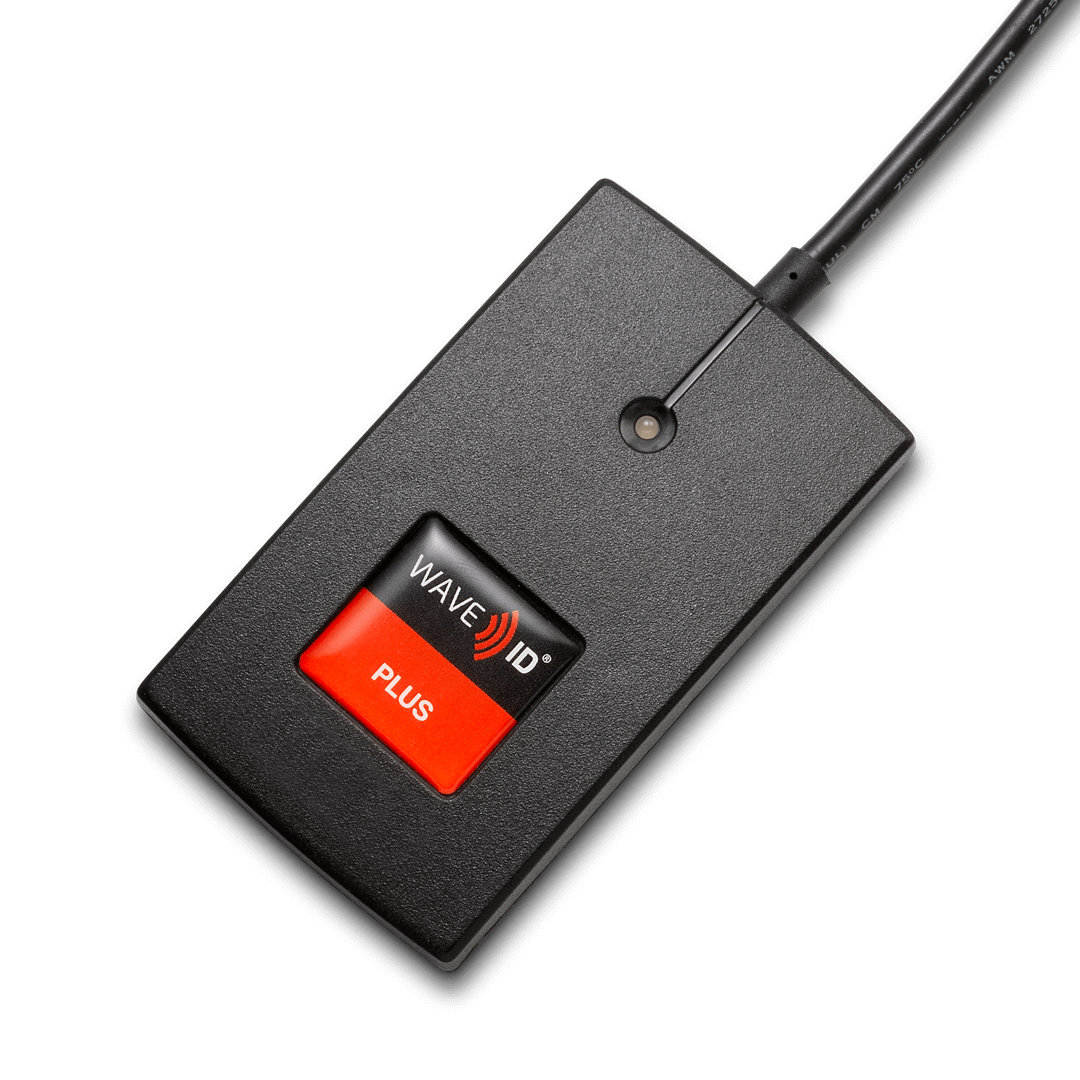

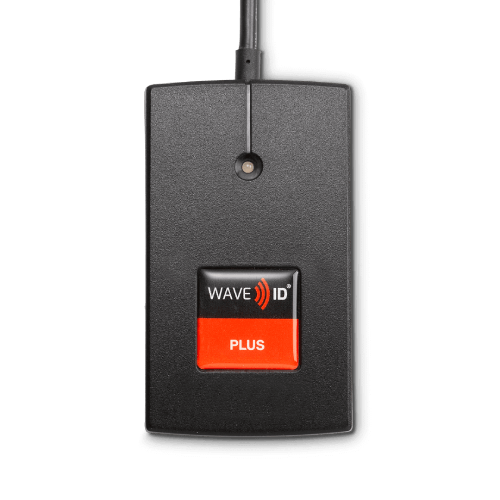

Housing/Form Factor

Desktop

Dimensions
3.6 in × 2.1 in × 0.7 in(9 cm × 5.2 cm × 1.7 cm)
Weight
4 oz(113.4 g)
Dimensions
3.6 in × 2.1 in × 0.7 in(9 cm × 5.2 cm × 1.7 cm)
Weight
4 oz(113.4 g)
Housing Color

Desktop — Black, Pearl

Surface Mount — Black, White

Hardware Integration Pocket — Jack Black

Mounting Options

Surface Mount housing can be easily mounted on panels, kiosks, and other indoor applications. It is designed for mounting with 1" #8 screws only (not included), at a maximum force of 6.25 in/lbs. The Desktop reader has an articulated cable for easy placement on desktops, counters, and more. The IP67 compliant readers must be installed according to the installation guide (enclosed with all units).

Cable Length

Desktop — 6 in, 16 in & 6 ft

Surface Mount — 13 in

Hardware Integration Pocket — Internal Mount is 2 ¾", External Mount is 6'’. (Custom Lengths Available. Call our Sales department at (866) 439-4884.)

Indicators

Tri-state LED, dual tone beeper

Power Supply

USB Self-powered

PoE

Serial RS-232: several power options exist

Interface

USB, Serial RS-232, Ethernet

Software Development Kit (SDK)
No

Environmental Usage

Operating Temperature Range
-30℃ to 65℃ (-22℉ to 150℉ )
Operating Humidity Range

5% to 95% relative humidity, non-condensing

Storage Temperature Range
-40℃ to 85℃ (-40℉ to 185℉ )

General Information

Certifications

FCC, United States; CE Mark, Europe; RCM, Australia; IC, Industry Canada. Environment:  RoHS, REACH. Please call rf IDEAS or information about other certifications.

Warranty

One year for material/workmanship defects. See complete policy for details

Product Resources

Case Study

Data Sheet

Software Download

Model Selector
Model NameSKUCard TechnologyData OutputHousing/Form FactorConnectorCableCard Frequency
WAVE ID® Plus Keystroke OEM module USB Reader OEM-805N1AKU HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke USB N/A 125 kHz, 13.56 MHz
WAVE ID® Plus SDK OEM module USB Reader OEM-805N2AKU HID iCLASS CSN, HID Prox, MIFARE CSN SDK USB N/A 125 kHz, 13.56 MHz
WAVE ID® Plus Embedded USB SDK Coplaner SDK reader OEM-805X2AXU-Y HID iCLASS CSN, HID Prox, MIFARE CSN SDK USB N/A 125 kHz, 13.56 MHz
WAVE ID® Plus Enroll w/ iCLASS ID Black USB Virtual COM Reader HID iCLASS SE, Seos Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & SEOS Black Virtual COM Reader RDR-80081AK0 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus V2 Keystroke w/ iCLASS ID Black 5v PS/2 RS232 Reader RDR-80081AK2 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop Serial 5v w/ PS N/A 125 kHz, 13.56 MHz
WAVE ID® Plus V2 Keystroke w/ iCLASS ID Black 5v Pin9 RS232 Reader RDR-80081AK5 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop Serial 5v Pin 9 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID Black 9v ext p.s. RS232 Reader RDR-80081AK7 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop Serial 9v w/ PS 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID Black 5v USB pwr tap RS232 Reader RDR-80081AK9 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop Serial w/ USB Power 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & Seos Black 6in. USB Reader RDR-80081AKU-C06 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & SEOS Black 16in. USB Reader RDR-80081AKU-C16 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop USB 16" 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & SEOS Black USB Reader RDR-80081AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 w/ iCLASS ID & Seos Black Virtual COM Reader RDR-80082AK0 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos SDK Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 w/ iCLASS ID & SEOS Black USB Reader RDR-80082AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos SDK Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke SP w/ iCLASS ID & Seos Black USB Reader RDR-800H1AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke SP USB N/A 125 kHz, 13.56 MHz
WAVE ID® Plus V2 Keystroke w/ iCLASS ID non-housed USB Reader RDR-800N1AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke USB N/A 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID Surface Mount Black 5v Pin 9 RS232 Reader RDR-800W1AK5 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Surface Mount Serial 5v Pin 9 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID Surface Mount Black 5v USB pwr tap RS232 Reader RDR-800W1AK9 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Surface Mount Serial w/ USB Power 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID Surface Mount Black EtherNet/IP POE Reader RDR-800W1AKB-P HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Surface Mount TCP/IP Ethernet PoE N/A 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & Seos Surface Mount Black USB Reader - 6FT cable RDR-800W1AKU-C72 HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Surface Mount USB 72" 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 w/ iCLASS ID & Seos Surface Mount Black USB Reader RDR-800W1AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos Keystroke Surface Mount USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 w/ iCLASS ID Surface Mount Black USB Reader RDR-800W2AKU HID iCLASS CSN, HID iCLASS SE, HID Prox, MIFARE CSN, Seos SDK Surface Mount USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black Virtual COM Reader RDR-80581AK0 HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black 5v P/S 2. RS232 Reader RDR-80581AK2 HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Desktop Serial 5v w/ PS 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black 5v Pin 9. RS232 Reader RDR-80581AK5 HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Desktop Serial 5v Pin 9 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black 9v p.s. RS232 Reader RDR-80581AK7 HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Desktop Serial 9v w/ PS 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke Black EtherNet/IP POE Reader RDR-80581AKB-P HID Prox, iCLASS CSN, MIFARE CSN Keystroke Desktop TCP/IP Ethernet PoE 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Enroll Black Ethernet Reader w/ Power supply 125 kHz UID*, 13.56 MHz CSN* Keystroke Desktop TCP/IP Ethernet w/ PS 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Enroll Black Ethernet POE Reader 125 kHz UID*, 13.56 MHz CSN* Keystroke Desktop TCP/IP Ethernet PoE 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black 6in. USB Reader RDR-80581AKU-C06 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black 16in. USB Reader RDR-80581AKU-C16 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Desktop USB 16" 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Black USB Reader RDR-80581AKU HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 Black USB Virtual COM Reader RDR-80582AK0 125 kHz UID*, 13.56 MHz CSN* SDK Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK Black USB Reader RDR-80582AKU HID Prox, iCLASS CSN, MIFARE CSN SDK Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 Black 16 in USB Reader 125 kHz UID*, 13.56 MHz CSN* SDK Desktop USB 16" 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 Black USB Reader RDR-80582AKU HID Prox, iCLASS CSN, MIFARE CSN SDK Desktop USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke SP Black USB Reader RDR-805H1AKU HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke SP USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke SP Black USB Reader RDR-805H1AKU-X HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke SP USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus V2 Keystroke non-housed no cable 5v RS232 Reader RDR-805N1-2 HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke Serial 5v Pin 9 N/A 125 kHz, 13.56 MHz
WAVE ID® Plus V2 Keystroke non-housed USB Reader RDR-805N1AKU HID iCLASS CSN, HID Prox, MIFARE CSN Keystroke USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 Black non-housed 6ft. USB Virtual COM Reader RDR-805N2AK0 HID iCLASS CSN, HID Prox, MIFARE CSN SDK USB 72" 125 kHz, 13.56 MHz
WAVE ID® Plus SDK non-housed USB Reader RDR-805N2AKU-C06 HID Prox, iCLASS CSN, MIFARE CSN SDK USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Surface Mount Black USB Virtual COM Reader RDR-805W1AK0 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Surface Mount Black 5v Pin 9 RS232 Reader RDR-805W1AK5 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount Serial 5v Pin 9 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Surface Mount Black 9v ext p.s. RS232 Reader RDR-805W1AK7 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount Serial 5v Pin 9 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke Surface Mount Black EIP Ethernet POE Reader RDR-805W1AKB-P HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount TCP/IP Ethernet PoE 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke Surface Mount Black TCP/IP Ethernet POE Reader RDR-805W1AKE-P HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount TCP/IP Ethernet PoE 6' 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Surface Mount Black 6ft. USB Reader RDR-805W1AKU-C72 HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount USB 72" 125 kHz, 13.56 MHz
WAVE ID® Plus Keystroke V2 Surface Mount Black USB Reader RDR-805W1AKU HID Prox, iCLASS CSN, MIFARE CSN Keystroke Surface Mount USB 6' 125 kHz, 13.56 MHz
WAVE ID® Plus SDK V2 Surface Mount Black USB Reader RDR-805W2AKU HID Prox, iCLASS CSN, MIFARE CSN SDK Surface Mount USB 6' 125 kHz, 13.56 MHz
