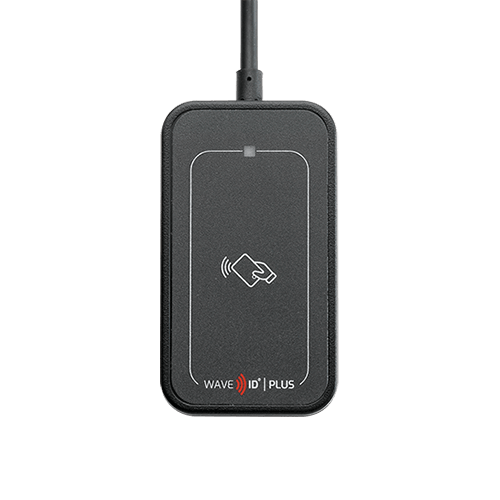

WAVE ID® Plus Mini LEGIC SM-6300

The WAVE ID® Plus Mini LEGIC reader is a compact, dual-frequency credential reader designed to support a wide range of proximity and contactless smart card technologies. Built on the advanced LEGIC 6300 IC, this versatile reader offers robust security and seamless integration with existing systems, making it ideal for identification, authentication, and access control applications. Whether for logical access to networks and software or physical access to secure areas, the Plus Mini LEGIC reader provides a future-proof solution that meets the evolving needs of modern organizations.

Contact Us Now
WAVE ID Plus Mini
0
0
0
Looking for pcProx?
pcproxcta-space
0
  • Specifications
  • Product Resources
  • List of SKU's

Operating Conditions

Operating Frequency
<p><strong>3L: </strong>13.56 MHz</p> <p><strong>30L:</strong> 125/132 kHz, 13.56 MHz and 2.4 GHz</p>
Typical Maximum Read Range
<p>1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions</p>
Power Consumption
<p>65 mA typical, 185 mA maximum</p>
Supported Card Types
<p>For a full list of supported card types, click <a href="https://www.rfideas.com/support/tools/supported-card-types">here</a>.</p>

Physical Characteristics

Model Number
3L -30L
Dimensions
3.6 in &times; 2.1 in &times; 0.7 in<span class="metric-conversion"> (9.1 cm &times; 5.3 cm &times; 1.8 cm)</span>
Weight
4 oz<span class="metric-conversion"> (113.4 g)</span>
Housing Color
<p>Black</p>
Mounting Options
<p>BKT-MINI: Mini Desktop Mounting Bracket</p> <p>KT-ANGLE-MINI: WAVE ID Black Angle Mini Mounting Bracket</p> <p>KT-ANGLE-MINI+CLIPS: WAVE ID Black Angle Mini Mounting Bracket w/Cable Clips</p> <p>KT-FLAT-MINI: WAVE ID Black Angle Mini Mounting Dual Lock Kit</p> <p>See<a href="/products/tools-utilities/accessories/mounting-brackets"> Mounting Brackets</a> for details</p>
Cable Length
<p>6’ standard; 6” and 16” lengths available</p>
Indicators
<p>Quad-state LED (off, green, amber, red) and adjustable beeper (off, low, medium, high)</p>
Form Factor
<p>Desktop</p>
Power Supply
<p>USB self-powered</p>
Software Development Kit (SDK)
Yes

Environmental Usage

Operating Temperature Range
-30&#8451; to 65&#8451; <span class="imperial-conversion"> (-22&#8457; to 150&#8457; )</span>
Operating Humidity Range
<p>5% to 95% relative humidity, non-condensing</p>
Storage Temperature Range
-40&#8451; to 85&#8451; <span class="imperial-conversion"> (-40&#8457; to 185&#8457; )</span>

General Information

Certifications
<p>FCC, United States; CE Mark-Europe; RCM, Australia; IC-Industry Canada, UL Environmental: RoHS, REACH. For more information on other global certifications, contact sales@RFIDeas.com.</p>
Warranty
<p>One year for material/workmanship defects. See complete policy for details.</p>
Compatible Operating Systems
<p>Windows 10 (32 &amp; 64 bit), 11 (64 bit), MacOS Monterey and above, Linux</p>
Additional Information
<p>Configuration Tools: rf IDEAS Configuration Utility, Smart Card Manager, Remote Reader Management Tool, available on rf IDEAS <a href="/support">support page</a></p>

Data Sheet

rfideas-wave-id-plus-mini-legic-datasheet-pa-161-legic.pdf

Below is a list of popular SKUs for this product line.

Model Name SKU Card Technology Data Output Housing/Form Factor Connector
WAVE ID Mobile Mini Virtual Com LEGIC Secure Segment 5v Pin 9 RS-232 Black Reader RDR-30531EK5 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Mini Desktop Serial 5v
WAVE ID Mobile Mini Virtual Com LEGIC Secure Segment USB Black Reader RDR-30L31EK0 aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Mini Desktop USB virtual port
WAVE ID Plus Mini Keystroke LEGIC Secure Segment USB Black Reader RDR-30L31EKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, LEGIC Segment MIFARE® Classic CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN, NFC Type 1 CSN (Topaz) Mini Desktop USB-A
WAVE ID Mobile Mini Keystroke LEGIC Secure Segment with HID SEOS USB Black Reader RDR-30L31EKU-H aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN Mini Desktop USB-A
WAVE ID Plus Mini SDK LEGIC Secure Segment USB Black Reader RDR-30L32EKU aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN SDK Mini Desktop USB-A
WAVE ID Mobile Mini SDK LEGIC Secure Segment with HID SEOS USB Black Reader RDR-30L32EKU-H aptiQ™ MIFARE® CSN, AWID, Bosch ReadyKey Pro UID, Cardax UID, CASI-RUSCO, CDVI, CEPAS CAN, Corbin Russwin® UID, Cotag, DIGITAG, Dimpna UID, Farpointe Data Pyramid, Farpointe Data Pyramid UID, GProx-II ID, GProx-II UID, HID™ iCLASS, HID™ iCLASS Seos™, HID™ iCLASS SE™, HID™ iCLASS™ CSN, HID™ Prox, HiTag 1 CSN, HiTag 2 CSN, HiTag S CSN, Honeywell Nexwatch, I-tag CSN, Indala, Infineon my-d™ CSN, ISO 14443A CSN, ISO 14443B CSN, ISO 15693 CSN, ISONAS™, Kantech ioProx, Keri KC-10x UID, Keri KC-26x, Keri NXT UID, LEGIC prime CSN, LEGIC Segment MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NEDAP Prox, NFC Type 2 CSN, NFC Type 4 CSN, NXP ICODE® SLI CSN, Oyster CSN, Paradox, Postech, RF Logics UID, Rosslare, SecuraKey-02 Radio Key®, SecuraKey e*tag® CSN, Texas Instruments Tag-It CSN, Urmet, XceedID® MIFARE® CSN, EM 410x (4100/4102/4105/4200), ID Teck (128 Bits), LEGIC Advant CSN (ISO 15693 / 14443A), NFC Type 1 CSN (Topaz), NFC Type 3 CSN (Felica), TechnoGym (Key Fob) CSN SDK Mini Desktop USB-A
WAVE ID Solo Mini Keystroke LEGIC Secure Segment USB Black Reader RDR-3L31EKU HID™ iCLASS™ CSN, ISO 14443A, B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, LEGIC prime CSN, LEGIC Segment, CEPAS, etag, I-Code, Infineon my-d™, Texas Instruments Tag-It, Topaz (NFC 1), LEGIC Advant CSN (ISO 15693 / 14443A), i-tag (IBM) Mini Desktop USB-A
WAVE ID Solo Mini SDK LEGIC Secure Segment USB Black Reader RDR-3L32EKU HID™ iCLASS™ CSN, ISO 14443A, B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, LEGIC prime CSN, LEGIC Segment, CEPAS, etag, I-Code, Infineon my-d™, Texas Instruments Tag-It, Topaz (NFC 1), LEGIC Advant CSN (ISO 15693 / 14443A), i-tag (IBM) SDK Mini Desktop USB-A
WAVE ID Solo Mini LEGIC Secure INIT USB Black Writer/Playback Reader RDR-3L35EKU HID™ iCLASS™ CSN, ISO 14443A, B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, LEGIC prime CSN, LEGIC Segment, CEPAS, etag, I-Code, Infineon my-d™, Texas Instruments Tag-It, Topaz (NFC 1), i-tag (IBM), LEGIC Advant CSN (ISO 15693 / 14443A) Playback Mini Desktop USB-A
WAVE ID Mobile Mini CCID/FIDO LEGIC Secure Segment USB Black Reader RDR-3L36EKU HID™ iCLASS™ CSN, ISO 14443A, B CSN, ISO 15693 CSN, MIFARE® Classic CSN, MIFARE® DESFire® EV1 CSN, MIFARE® Plus CSN, MIFARE® Ultralight CSN, NFC Type 2 CSN, NFC Type 4 CSN, LEGIC prime CSN, LEGIC Segment, CEPAS, etag, I-Code, Infineon my-d™, Texas Instruments Tag-It, Topaz (NFC 1), i-tag (IBM), LEGIC Advant CSN (ISO 15693 / 14443A) CCID Mini Desktop USB-A

*Note: Conditional (limited NFC read range and position dependent; customers must validate that performance meets their requirements).
